MAGNETIC GRILL

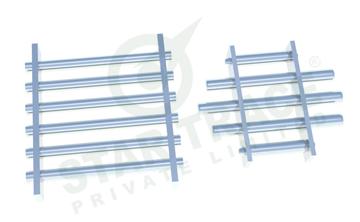

Magnetic Grill

INTRODUCTION:

Star Trace Magnet filters are made up of stainless steel tubes. Each tube consists of an array of permanent magnet discs specially designed and configured to generate high magnet forces. The filters can be supplied using either ferrite or rate earth magnets. The tubes have a diameter of either 3/4" or 1" or 1.5". The filters can be supplied in various sizes with width and length varying from 9 to 36 inches. Circular or rectangular shapes are offered. Customized sizes, shapes and design can also be offered.

Grill Magnets are important Tramp iron separators, used for separating tramp iron or ferrous contaminants from free flowing granular materials. Our grill are made of rare earth or ceramic magnets. The grills are aligned in certain angles that attracts the contaminants. Available in various shapes and sizes, our grill magnets have wide applicability in various industries like chemical industries, food processing industries, mining and mineral industries plastic and ceramic industries etc.

Grill Magnets offer excellent protection from metal contamination. As product flows over the magnet tubes, captured metal contaminants are pushed to the underside of the tube where they are now out of contact with the product flow preventing was hoff back in to the clean material.

CONSTRUCTION:

The Tramp Iron Separator are made up of magnet elements, which are fitted inside a required size frame. Magnet Elements are made up of hard ferrite ceramic magnets or high intensity rare earth magnets. All the components are made up of Stainless Steel 304/316 material. The overall construction of the grills can also be made as per the customer specification and sizes.

WORKING:

As the material flows through the grill, the iron particles are attracted by the magnets and they are trapped over the surface of the element. The trapped material has to be removed manually after removing grill from its location. In case of self cleaning grill the iron particles get trapped over the extra sleeve provided on the elements, they get released as soon as the elements are pushed out of the sleeves.

TYPES OF MAGNET FILTERS:

Round Magnet Grills
Rectangular Magnetic Grills
Square Magnetic Grill
Self Cleaning Magnetic Grill
Tramp Iron Separator
Iron Separator

Types

The following are the types of magnetic grill:

Round Grill.
Rectangular & Square Grill.
Self Cleaning Magnetic Grill.

Applications

Ink
Plastic
Minerals
Chemical
Ceramic
Colors / Paints
Pigments
Refractory
Pharmaceutical
Raw materials, etc in powder form. They can be installed in hoppers, chutes, etc.,
Food Products.e.g. Sugar, Coffee, Tea, Grains, Pulses, Flour, Spices, Milk powder etc.

Specification

LENGTH IN INCHES

WIDTH IN INCHES

10"

12"

14"

16"

18"

20"

22"

24"

26"

28"

30"

32"

34"

36"

M04W04L

M06W04L

M08W04L

M10W04L

M12W04L

M14W04L

M16W04L

M18W04L

M20W04L

M22W04L

M24W04L

M26W04L

M28W04L

M30W04L

M32W04L

M34W04L

M36W04L

M06W06L

M08W06L

M10W06L

M12W06L

M14W06L

M16W06L

M18W06L

M20W06L

M22W06L

M24W06L

M26W06L

M28W06L

M30W06L

M32W06L

M34W06L

M36W06L

M08W08L

M10W08L

M12W08L

M14W08L

M16W08L

M18W08L

M20W08L

M22W08L

M24W08L

M26W08L

M28W08L

M30W08L

M32W08L

M34W08L

M36W08L

10"

M10W10L

M12W10L

M14W10L

M16W10L

M18W10L

M20W10L

M22W10L

M24W10L

M26W10L

M28W10L

M30W10L

M32W10L

M34W10L

M36W10L

12"

M12W12L

M14W12L

M16W12L

M18W12L

M20W12L

M22W12L

M24W12L

M26W12L

M28W12L

M30W12L

M32W12L

M34W12L

M36W12L

14"

M14W14L

M16W14L

M18W14L

M20W14L

M22W14L

M24W14L

M26W14L

M28W14L

M30W14L

M32W14L

M34W14L

M36W14L

16"

M16W16L

M18W16L

M20W16L

M22W16L

M24W16L

M26W16L

M28W16L

M30W16L

M32W16L

M34W16L

M36W16L

18"

M18W18L

M20W18L

M22W18L

M24W18L

M26W18L

M28W18L

M30W18L

M32W18L

M34W18L

M36W18L

20"

M20W20L

M22W20L

M24W20L

M26W20L

M28W20L

M30W20L

M32W20L

M34W20L

M36W20L

22"

M22W22L

M24W22L

M26W22L

M28W22L

M30W22L

M32W22L

M34W22L

M36W22L

24"

M24W24L

M26W24L

M28W24L

M30W24L

M32W24L

M34W24L

M36W24L

26"

M26W26L

M28W26L

M30W26L

M32W26L

M34W26L

M36W26L

28"

M28W28L

M30W28L

M32W28L

M34W28L

M36W28L

30"

M30W30L

M32W30L

M34W30L

M36W30L

32"

M32W32L

M34W32L

M36W32L

34"

M34W34L

M36W34L

36"

M36W36L

Flowchart of Magnetic Grates (Rectangular tubes - Rectangular Shape)
				Bulk Density (Kgs./Hr)
Size	Square Inches	Cu M/Hr.	Weight Kgs	640 Kgs./Cu.M.	800 Kgs./Cu.M.	960 Kgs./Cu.M.	1120 Kgs./Cu.M.
08W08L	64	23	25.8	500	550	650	750
10W10L	100	30	32.5	700	800	1000	1200
12W12L	144	50	50.2	1000	1200	1500	1700
14W14L	196	70	58.8	1350	1700	2000	2300
16W16L	256	90	82.1	1700	2100	2500	3000
18W18L	324	110	92.6	2200	2700	3250	3800
20W20L	400	150	121.6	2600	3400	4000	4700
22W22L	484	170	134	3200	4000	5000	5700
24W24L	576	200	168.6	3800	5000	6000	6800
26W26L	676	230	182.9	4500	6000	7000	8000
28W28L	784	270	223.3	5200	6600	8000	9250
30W30L	900	310	239.4	6000	8000	9000	10500
32W32L	1024	360	285.5	7000	8500	10000	12000
34W34L	1156	400	303.5	7700	9700	11500	13500
36W36L	1296	450	355.2	8700	12000	13500	12250
40W40L	1600	560	432.7	10500	13500	16000	19000
44W44L	1936	680	517.4	13000	16500	19500	23000
48W48L	2304	800	609.8	15500	19000	22250	27200

LENGTH IN INCHES

WIDTH IN INCHES

12"

16"

20"

24"

28"

32"

36"

40"

44"

48"

M(S)08W08L

M(S)08W12L

M(S)08W16L

M(S)08W20L

M(S)08W24L

M(S)08W28L

M(S)08W32L

M(S)08W36L

M(S)08W40L

M(S)08W44L

M(S)08W48L

12"

M(S)12W12L

M(S)12W16L

M(S)12W20L

M(S)12W24L

M(S)12W28L

M(S)12W32L

M(S)12W36L

M(S)12W40L

M(S)12W44L

M(S)12W48L

16"

M(S)16W16L

M(S)16W20L

M(S)16W24L

M(S)16W28L

M(S)16W32L

M(S)16W36L

M(S)16W40L

M(S)16W44L

M(S)16W48L

20"

M(S)20W20L

M(S)20W24L

M(S)20W28L

M(S)20W32L

M(S)20W36L

M(S)20W40L

M(S)20W44L

M(S)20W48L

24"

M(S)24W24L

M(S)24W28L

M(S)24W32L

M(S)24W36L

M(S)24W40L

M(S)24W44L

M(S)24W48L

28"

M(S)28W28L

M(S)28W32L

M(S)28W36L

M(S)28W40L

M(S)28W44L

M(S)28W48L

32"

M(S)32W32L

M(S)32W36L

M(S)32W40L

M(S)32W44L

M(S)32W48L

36"

M(S)36W36L

M(S)36W40L

M(S)36W44L

M(S)36W48L

40"

M(S)40W40L

M(S)40W44L

M(S)40W48L

44"

M(S)44W44L

M(S)44W48L

48"

M(S)48W48L

Flowchart of Magnetic Grates (Square tubes - Square Shape)
Size	Number of Tubes	Square Inches	Cu M/Hr.	Weight Kgs	640 Kgs./Cu.M.	800 Kgs./Cu.M.	960 Kgs./Cu.M.	1120 Kgs./Cu.M.
04W04L	2	16	5	3.4	150	200	250	300
06W06L	3	36	13	7	250	300	380	450
08W08L	4	64	22	11.5	450	560	680	800
10W10L	5	100	35	17.6	700	880	1000	1200
12W12L	6	144	51	23.9	1000	1200	1500	1600
14W14L	7	196	69	33.1	1300	1700	2000	2400
16W16L	8	256	90	42	1800	2200	2700	3100
18W18L	9	324	114	52.9	2200	2800	3400	4000
20W20L	10	400	141	63.6	2800	3500	4200	4900
22W22L	11	484	171	77.1	3400	4200	5100	6000
24W24L	12	576	204	90.5	4000	5100	6100	7100
26W26L	13	676	239	106	4700	5900	7100	8300
28W28L	14	784	277	122.2	5500	6900	8300	9700
30W30L	15	900	318	139.7	6300	7900	9500	11100
32W32L	16	1024	362	158.1	7200	9000	10800	12600
34W34L	17	1156	410	177.9	8000	10200	11700	14300
36W36L	18	1296	459	198.9	9000	11400	13700	16000

Size and flowchart of Magnetic Grates (Round Tube - Round Shape)
Part No.	Grate Dia.	No. of Tubes	Square Inches	Cu M/Hr.	Weight Kgs.	640 Kgs./Cu.M.	800 Kgs./Cu.M.	960 Kgs./Cu.M.	1120 Kgs./Cu.M.
M06D	6"	3	28	10	1.4	250	300	350	400
M08D	8"	4	50	23	2.4	450	560	650	800
M10D	10"	5	78	26	3.8	700	880	1000	1200
M12D	12"	6	113	51	5.4	1000	1200	1500	1700
M14D	14"	7	153	70	7.3	1300	1700	2000	2400
M16D	16"	8	201	91	9.6	1800	2200	2700	3100
M18D	18"	9	254	115	12.1	2200	2800	3400	4000
M20D	20"	10	314	142	14.9	2800	3500	4200	4900
M22D	22"	11	380	172	18.1	2400	4200	5100	6000
M24D	24"	12	452	204	21.5	4000	5100	6100	7100
M26D	26"	13	530	240	25.2	4700	5900	7100	8300
M28D	28"	14	615	178	29.3	5500	6900	8300	9700
M30D	30"	15	706	319	33.6	6300	7900	9500	11100
M32D	32"	16	804	363	38.3	7200	9000	10800	12900
M34D	34"	17	907	410	43.2	8100	10200	12200	14300
M36D	36"	18	1017	459	48.4	9100	11400	13700	16000
