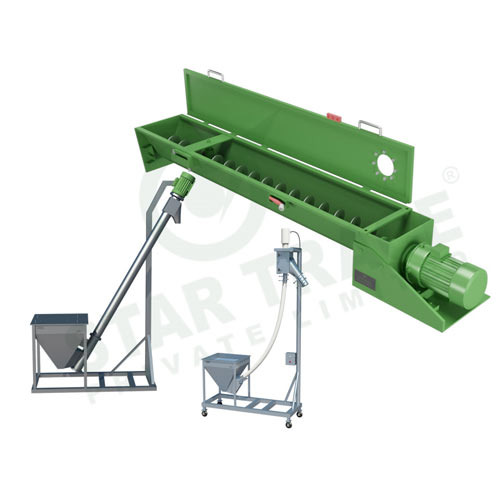

Screw Conveyor

INTRODUCTION:

We have a specialized dedicated team in the design and construction of screw conveyors. Each conveyor is spoke to the customer's requirements, infinite choices for size, speed, material or application.

• Coney
• Mix
• Feed
• Elevate

Materials such as sugar, cement, biomass, effluent, sludge cake, food stuffs, animal feed, ash, refuge, glass cullet, granules, limestone, salt, sand, wheat and barley.

These are used to transport bulk materials in a horizontal or inclined plane. The design of the conveyor is dependent on operating conditions, the type of transported material and its properties. Traffic enforcement can be controlled by changing the speed of propulsion.

• Screw Conveyor main parts
• Body (tube or trough)
• Worm (spiral shaft with iron)
• End Bearings
• Hopper
• Dump-tips
• Drive

Features:

• High quality motor and gear box, with heavy duty design, large torqe and low noise
• Outside tube complete with one inlet, one outlet, end flange, ball joint , inspection window
• Standard fitting parts, middle bearing, end bearing, splined shaft coupling
• Lifting eyes on each tube section, convinient for transport and installtion
• Small diameter, great efficiency, high throughout rates

Technical Specification for Screw Conveyor:

• Make : Star Trace
• Equipment : Screw Conveyor
• Capacity : 25 Tph
• Material : Pet Coke Handling
• Trough Dia : 255 Mm
• Trough Length : 3000mm (Inlet & Outlet Center Distance)
• Flight : Mild Steel
• Trough : Mild Steel
• End Cover : Mild Steel
• Screw Shaft : Mild Steel
• Screw Axis Speed : 30rpm
• Feed Opening : Ø 250mm
• Output Opening : Ø250mm
• Screw Pitch : Ø 250mm
• Bearing : Four Hole Flange Bearing
• Bearing Make : Ntn Japan (Imported)
• Drive : 1.5 Kw, 1440 Rpm, 3 Phase, 415v, 50hz, with Reduction Gear Box
